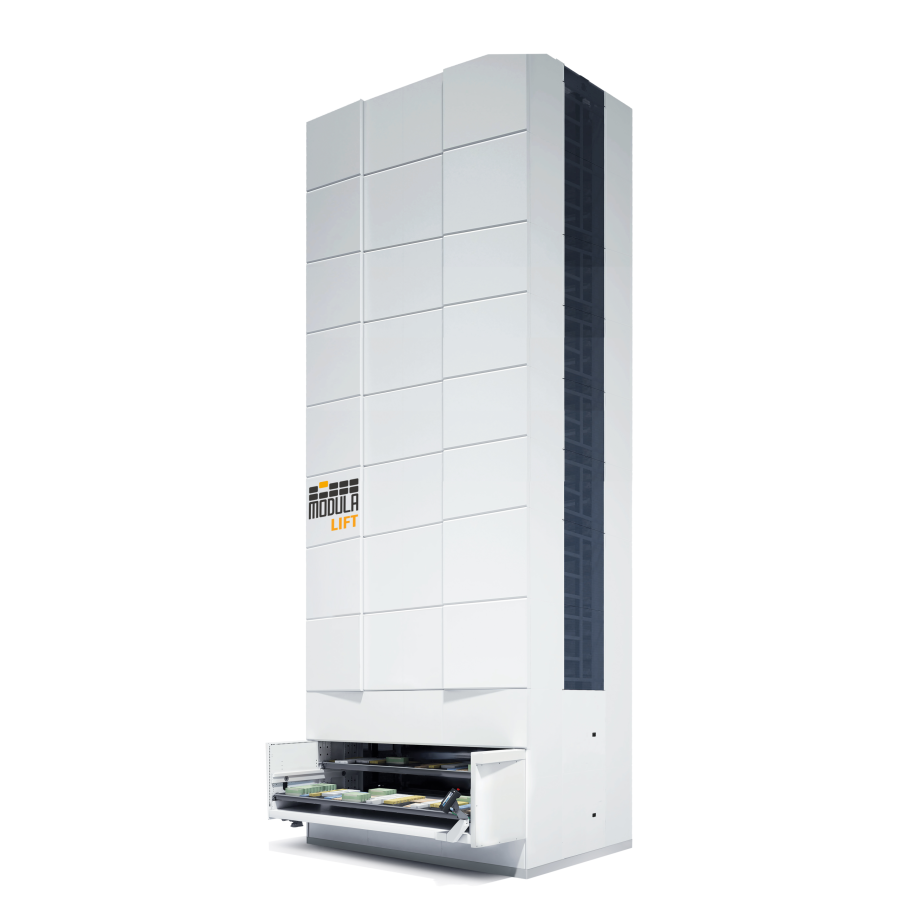

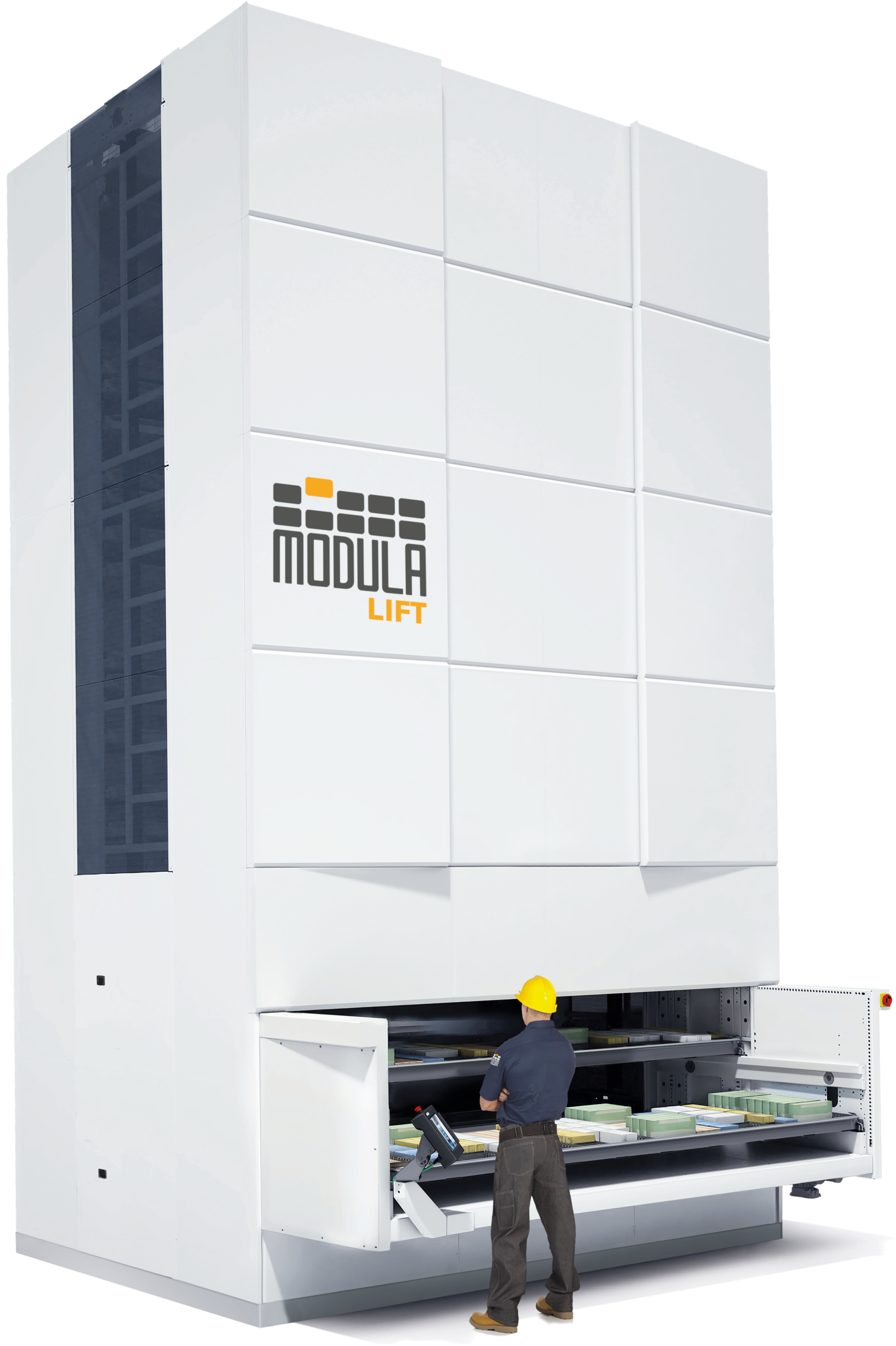

Modula Lift - Automated Vertical Storage System

The vertical warehouse that reduces floor space by 90%

Maximise your available space, improve picking efficiency, and take control of your inventory with the Modula Lift vertical storage system.

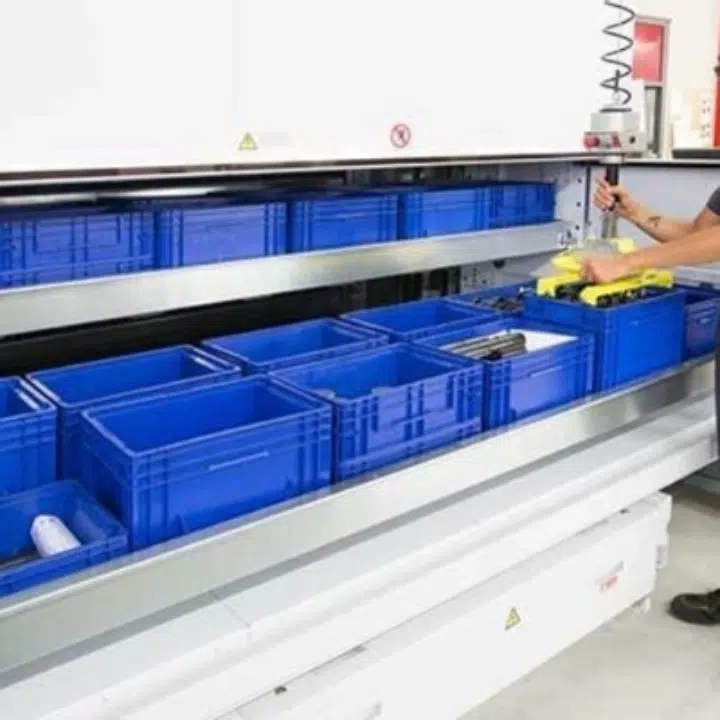

Modula Lift is the ideal automated warehouse solution for products, components and spare parts. Designed for modern warehouses and industrial environments, the Modula Lift uses a smart vertical design to transform unused ceiling height into high-density, accessible storage – helping you grow without expanding your footprint.

Recover Space
Customisable configurations to maximise your available space
Increased Productivity, Efficiency and Accuracy
Ergonomic and safe working environment
Real-time Inventory and Management

Standard max. height

90,000

Max. payload

Download Brochure Request a Quote

Modula Lift Technical Highlights

Maximise your available space, improve picking efficiency, and take control of your inventory - Technical Specifications

Unit Heights

3,300 - 21,000 mm

Unit Height Increment

200 mm

Tray Storage Pitch

25 mm

Tray Widths

1,500 - 4,100 mm

Tray Depths

654 mm & 857 mm & 1,257 mm

Net Tray Payload Capacities

250, 500, 750 & 990 kg

Gross Total Payload

For a standard machine with 1 bay, the gross load is 70,000 kg (with standard structure), and with reinforced structure, the gross load is 90,000 kg.

Throughput

90 trays/hr

Operator Interface

Industrial console with 10.4" touch screen/Copilot.

Modula Lift Benefits:

Recover Space

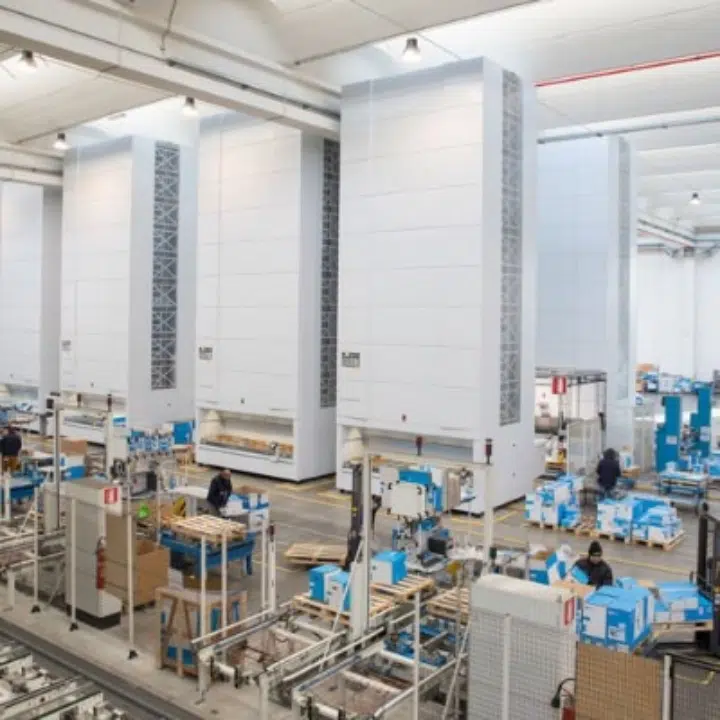

Boost your warehouse capacity with Modula solutions. One Modula Lift module is equivalent to more than 300 square meters of manual shelving.

Customisable configurations to maximise your available space
Built to fit your operation, the Modula Lift can be configured with multiple bay options, dual delivery levels, and layouts to suit your workflow and space. From small workshops to large distribution centres, Modula Lift adapts to your facility requirements.

Increased Productivity, Efficiency and Accuracy

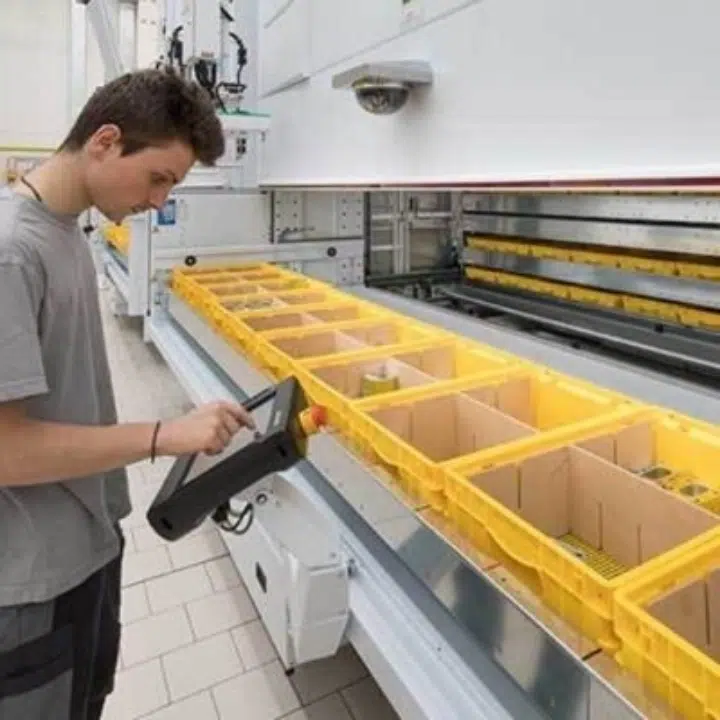

Boost picking speeds by up to 2 – 3x with visual guided systems that improve accuracy and reduce handling time. With real-time stock control, secure enclosed storage, and seamless ERP/WMS integration, your entire operation runs smarter and tighter.

Ergonomic and safe working environment

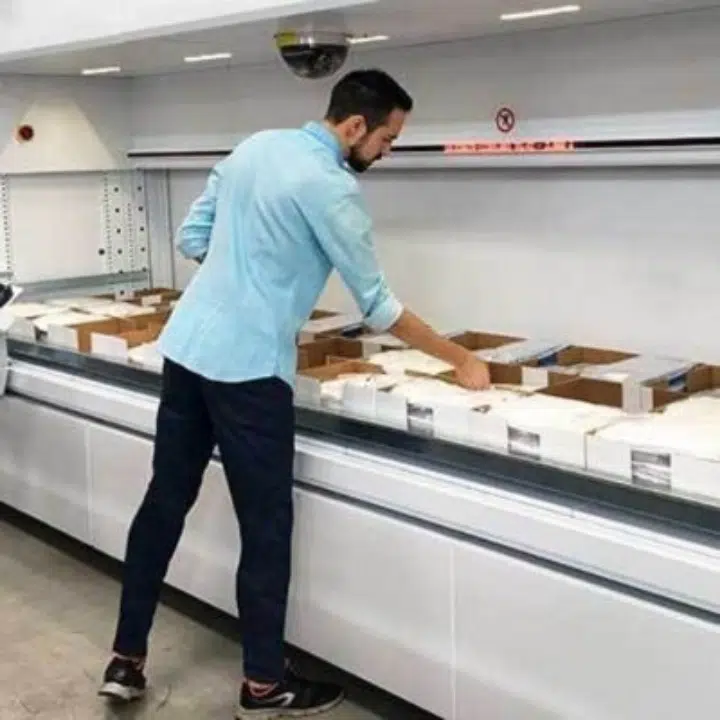

The Modula Lift improves safety by bringing items to an ergonomic picking height while eliminating unnecessary walking across the warehouse. An intuitive console keeps everything visible and easy to manage, helping optimise picking and stock control.

Real-time Inventory and Management
Warehouse management software packages Modula offers a range of warehouse software options, so you can choose the level that suits your operation. Each one connects smoothly with your existing systems, including ERP and DMS. End-to-End Inventory and Warehouse Management.

Modula Lift Inventory and Warehouse Management

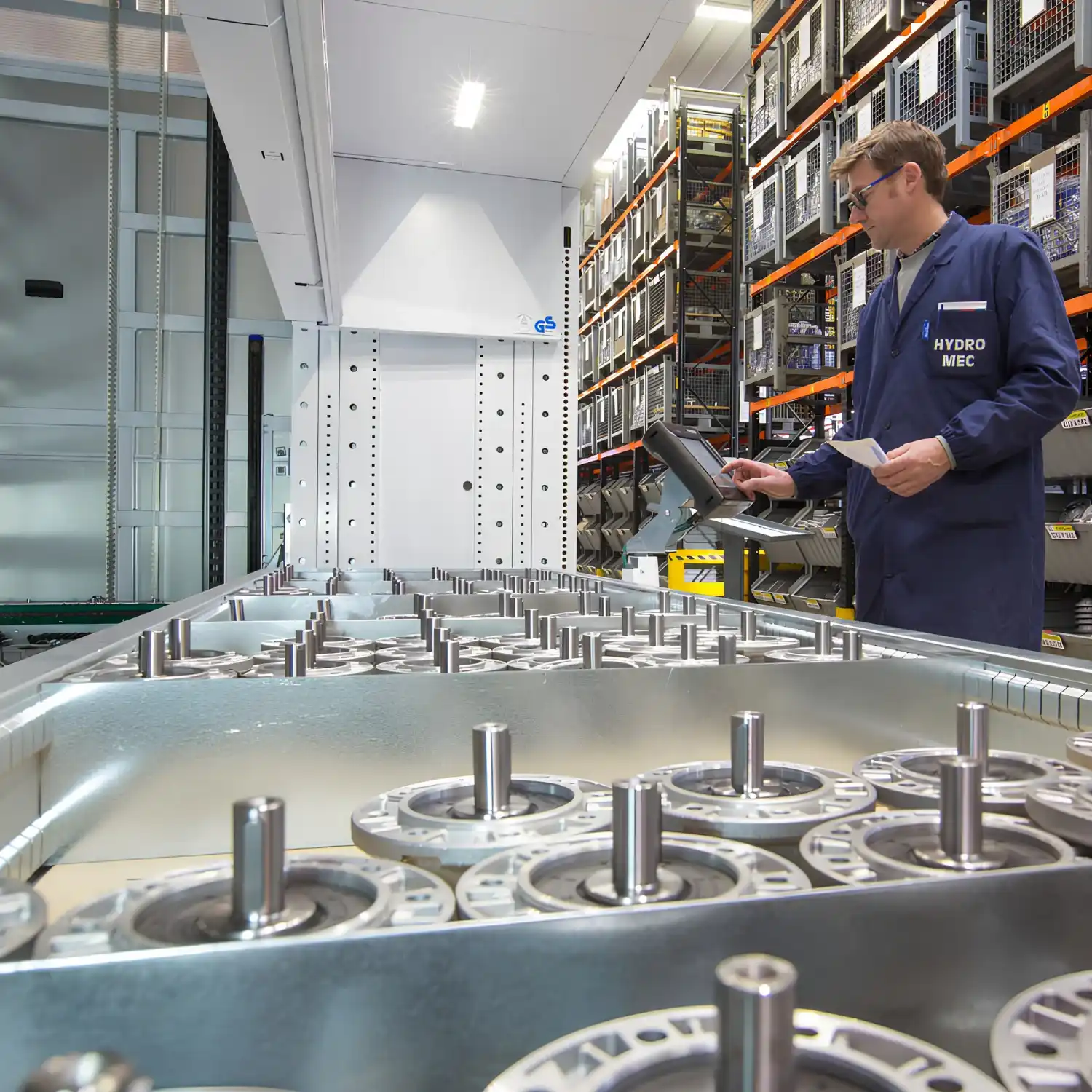

Modula WMS, automated warehouse management software, gives you real-time visibility of your stock, along with reporting and remote support to keep operations running smoothly. It helps improve accuracy, streamline picking, and maintain better control over your warehouse day-to-day.

It’s easy to set up and integrates with your existing ERP, MRP, WMS, or DMS systems.

Our dedicated support team are available to assist you with software configuration, integration with your ERP or DMS System and provide advanced training to ensure you are comfortable with the software.

Modula Warehouse Management Systems – Software Solutions

Modula Lift

Automated Vertical Storage System

Maximise your available space, improve picking efficiency, and take control of your inventory with the Modula Lift vertical storage system.
Modula Lift is the ideal automated warehouse solution for products, components and spare parts. Designed for modern warehouses and industrial environments, the Modula Lift uses a smart vertical design to transform unused ceiling height into high-density, accessible storage – helping you grow without expanding your footprint. Recover up to 90% of your warehouse floor space.

Boost your warehouse capacity with Modula solutions.

One Modula Lift module is equivalent to over 300 square meters of manual shelves.

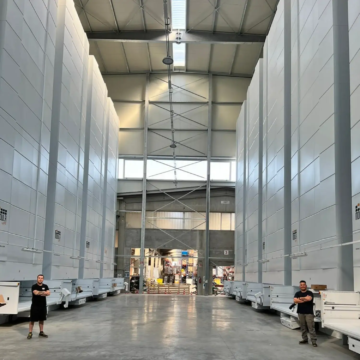

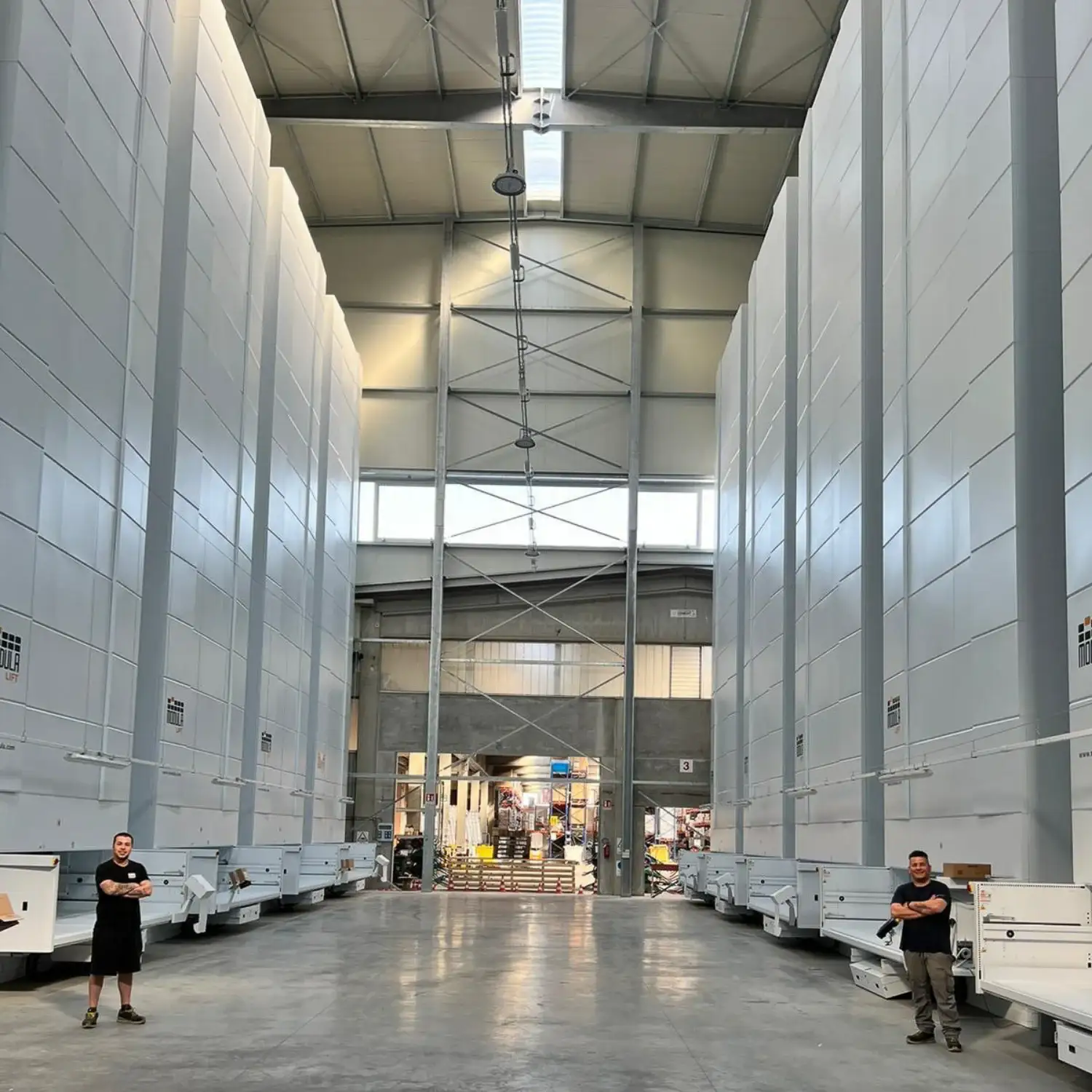

Recover space: By taking advantage of high ceilings, Modula’s automated warehouse solution could help you recover up to 90% of floor space.

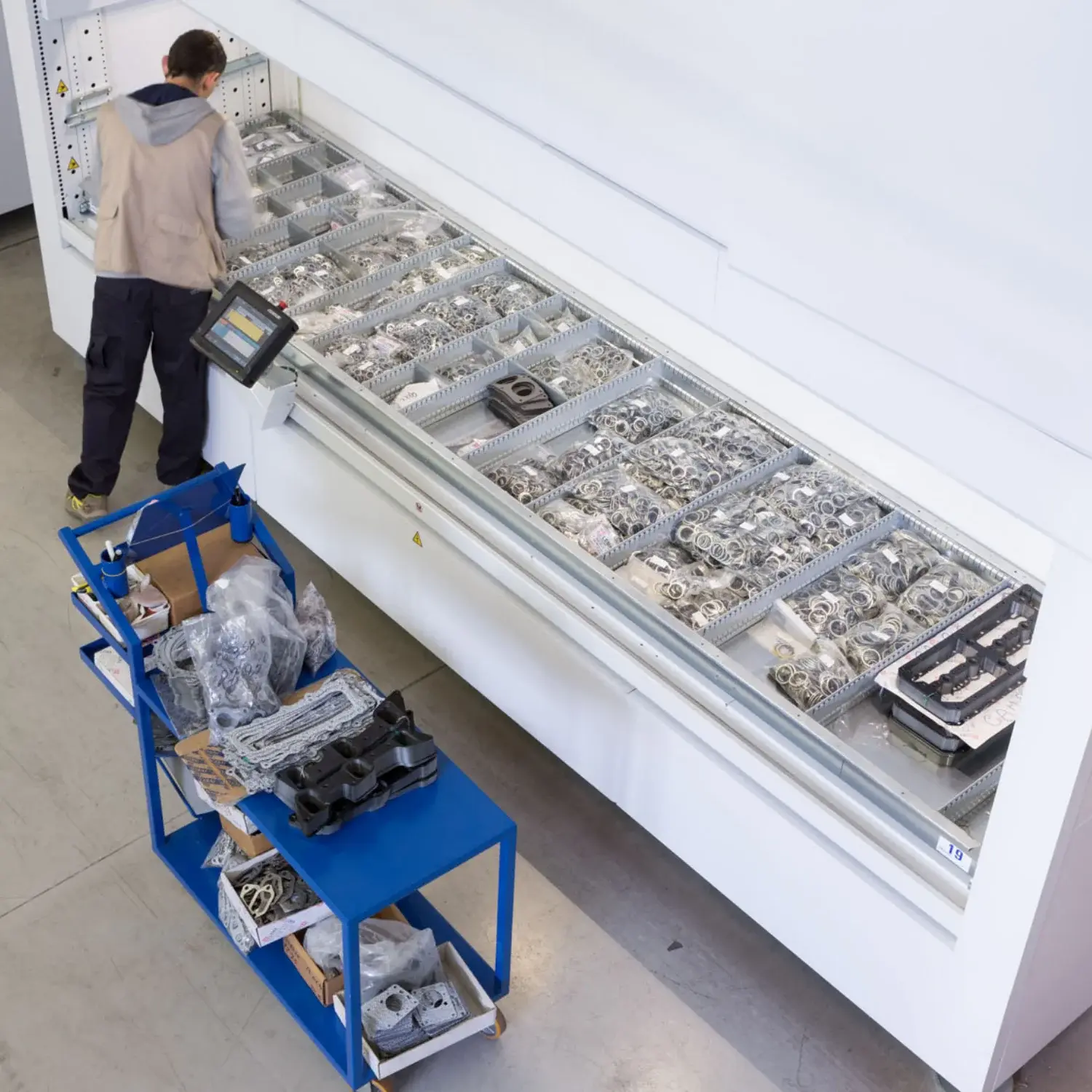

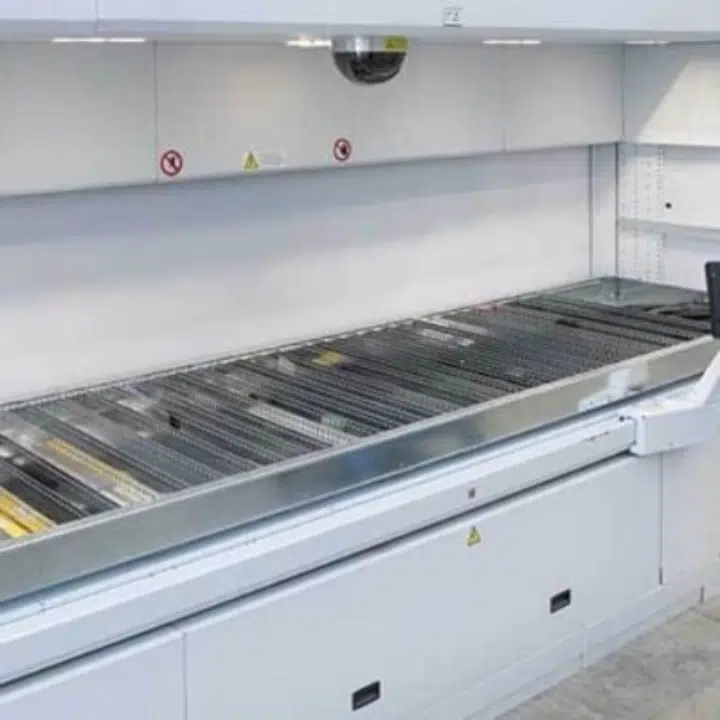

Different payload options across every tray width: Modula trays are designed to handle heavy loads without strain. Various payload options ensure maximum investment returns for your material handling needs.
Internal or external bay: Internal Bay is the best solution for very limited warehouse space. The external bay allows integration with picking aids such as cranes or mechanical manipulators to handle heavy materials.

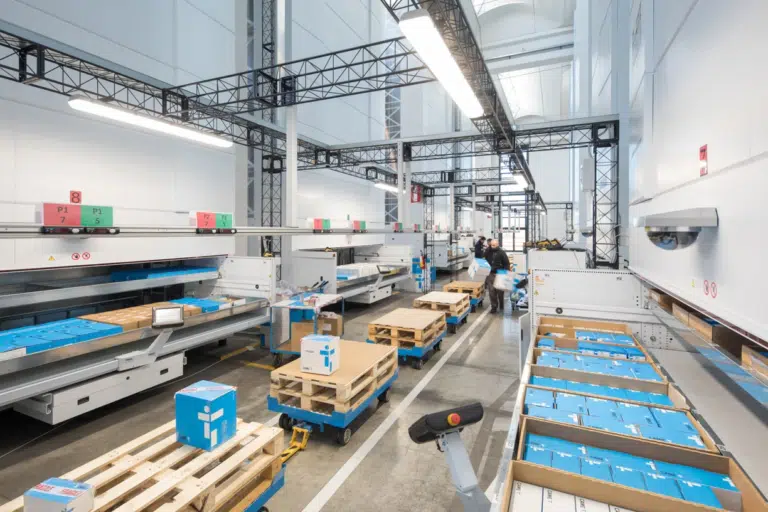

Single or dual delivery: Single delivery is suitable for less demanding throughput applications. Dual delivery boosts picking efficiency, especially when working in conjunction with an external bay.
