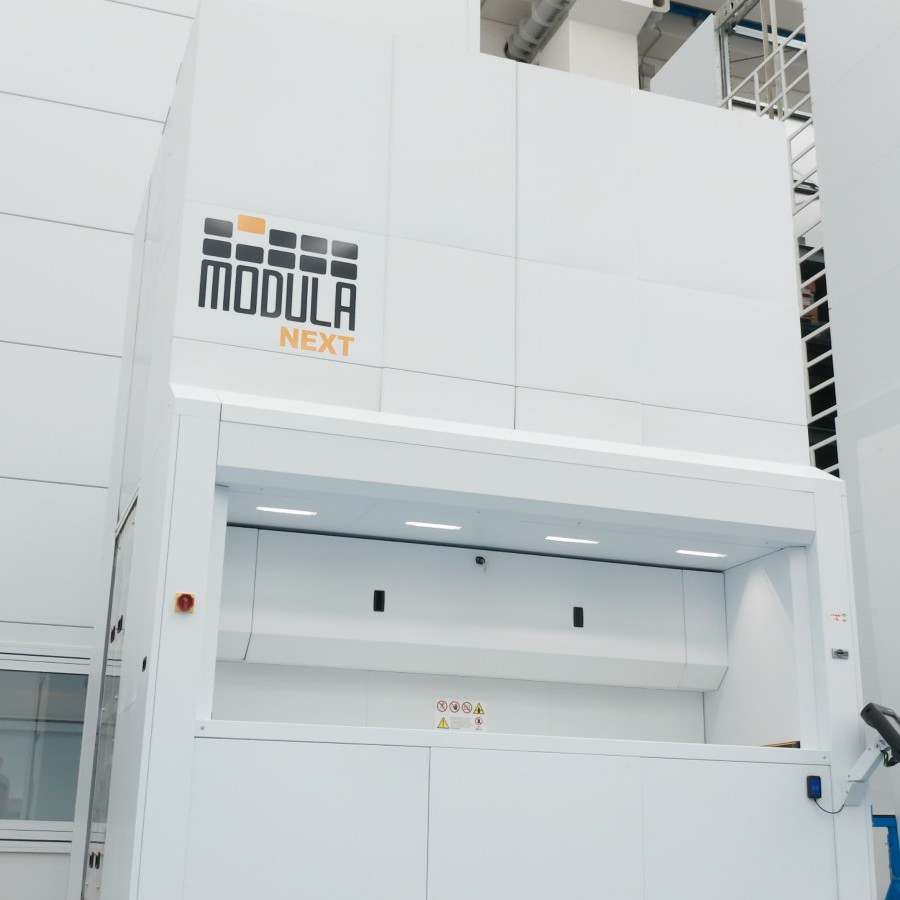

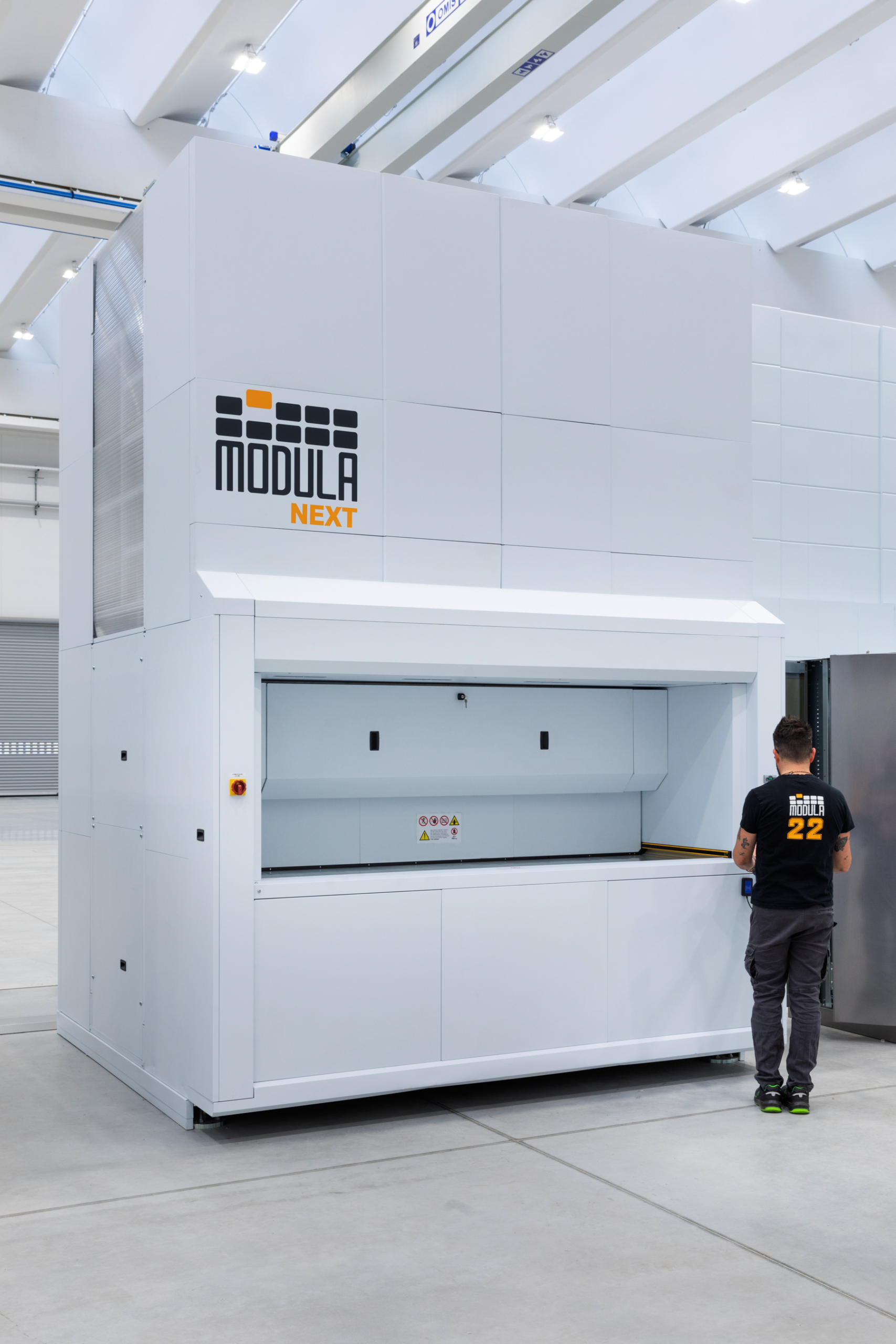

Modula Next – Controlled, Precise Automated Storage

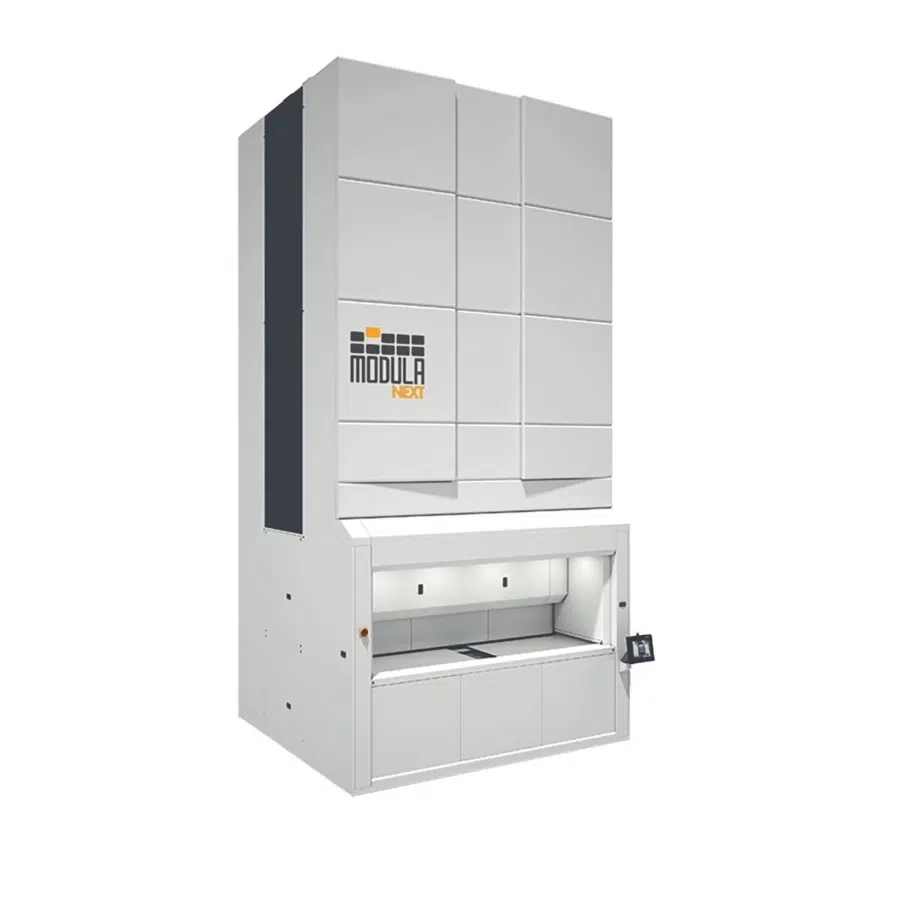

Modula NEXT is our new-generation lift module, providing the highest level of safety and control for automated picking in the warehouse. Taking the efficiency of a traditional vertical lift system and adding a level of control you’d normally only see in a vending machine.

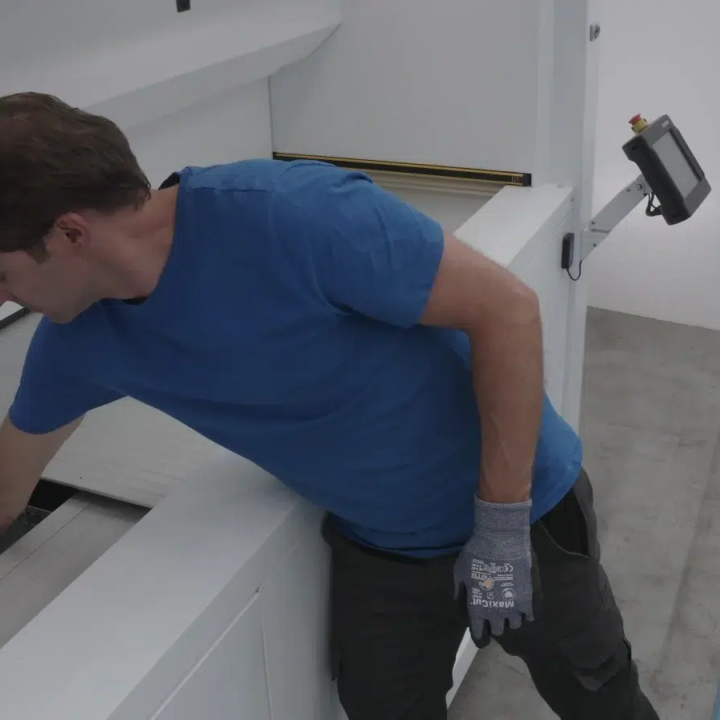

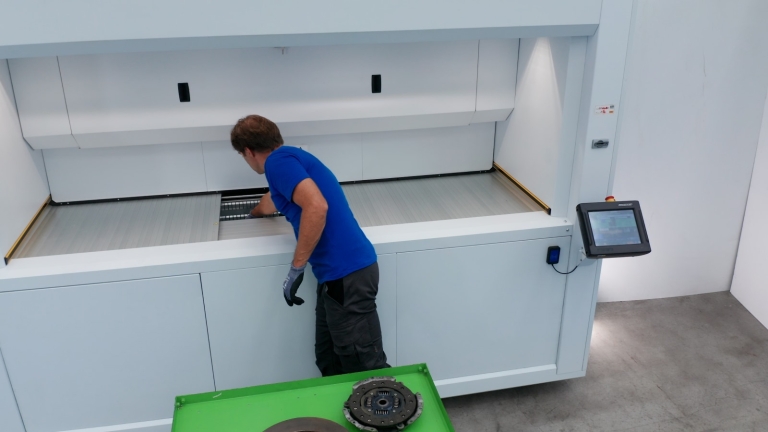

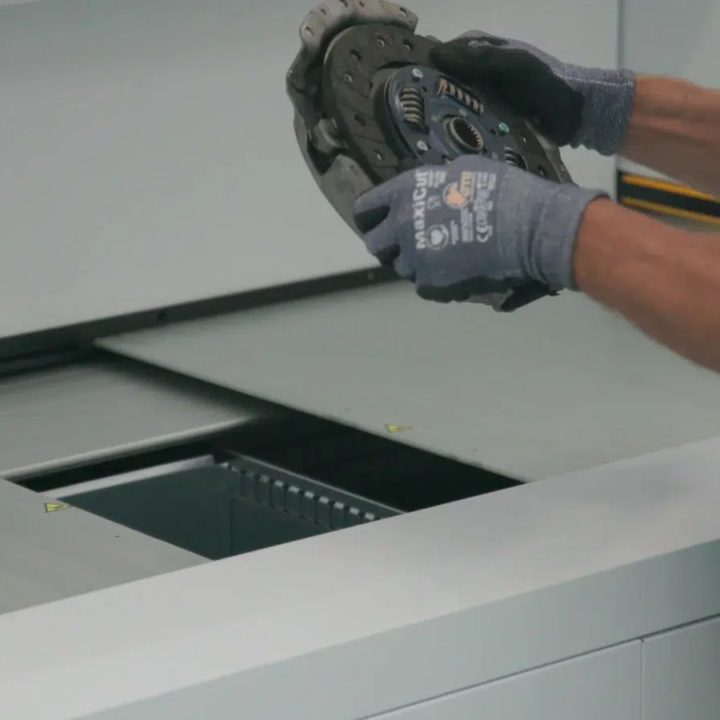

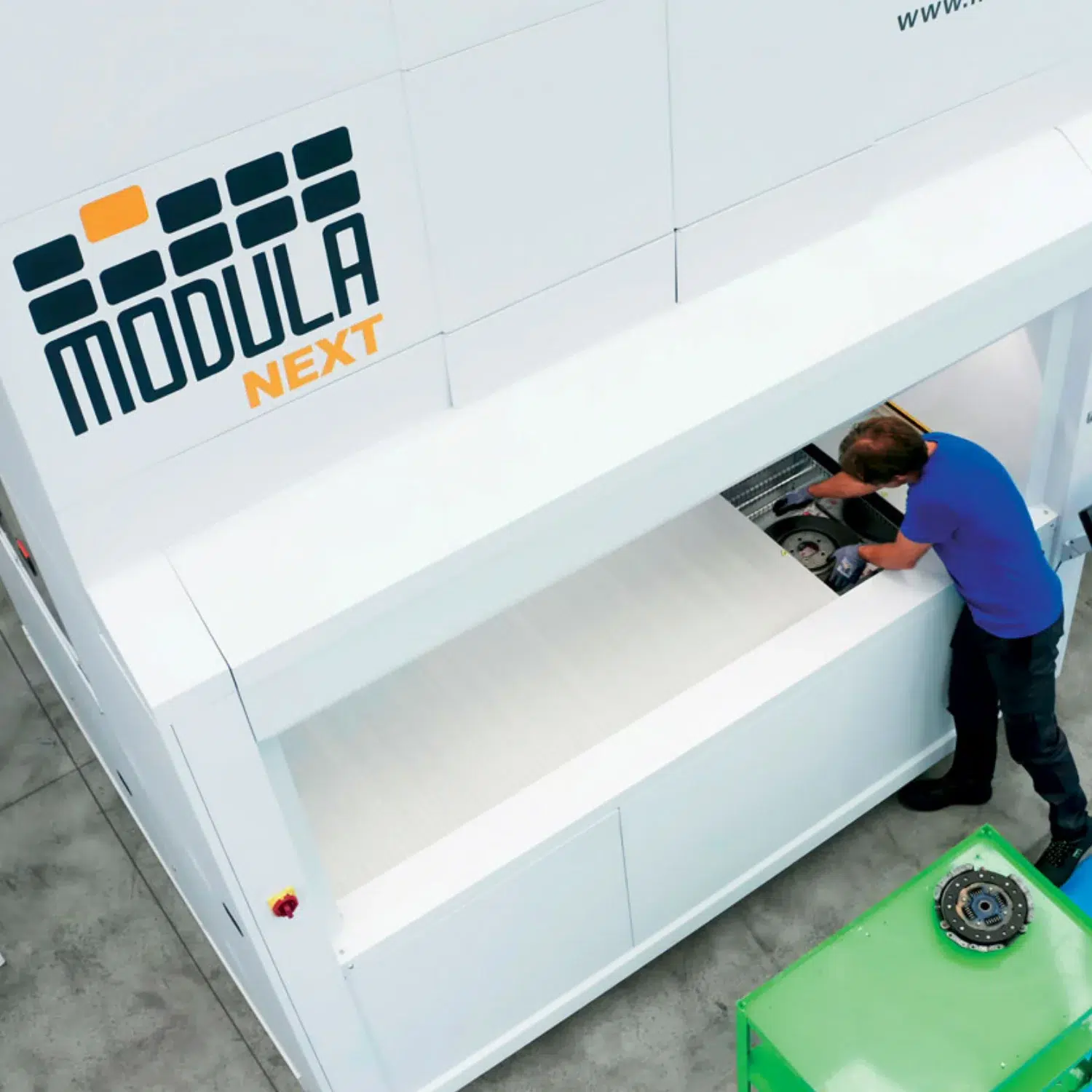

When an item is requested, the system retrieves the correct tray and presents it at an ergonomic picking bay – but instead of exposing the entire tray, it opens access to just one specific compartment.

This controlled access significantly reduces picking errors, particularly when dealing with similar or high-value items, while also improving security by preventing unauthorised access, damage, or misplaced stock.

Designed for environments where accuracy matters, Modula Next is well-suited to industries such as medical, electronics, defence, jewellery and high-value parts storage. It’s a smart step forward!

Enhanced Security Control
Intelligent system design
Improved Picking Accuracy & Efficiency
Complete Flexibility

16.1

Unit Height

500

Tray Payload

Download Brochure Request a Quote

Modula Next Benefits

Enhanced Security Control

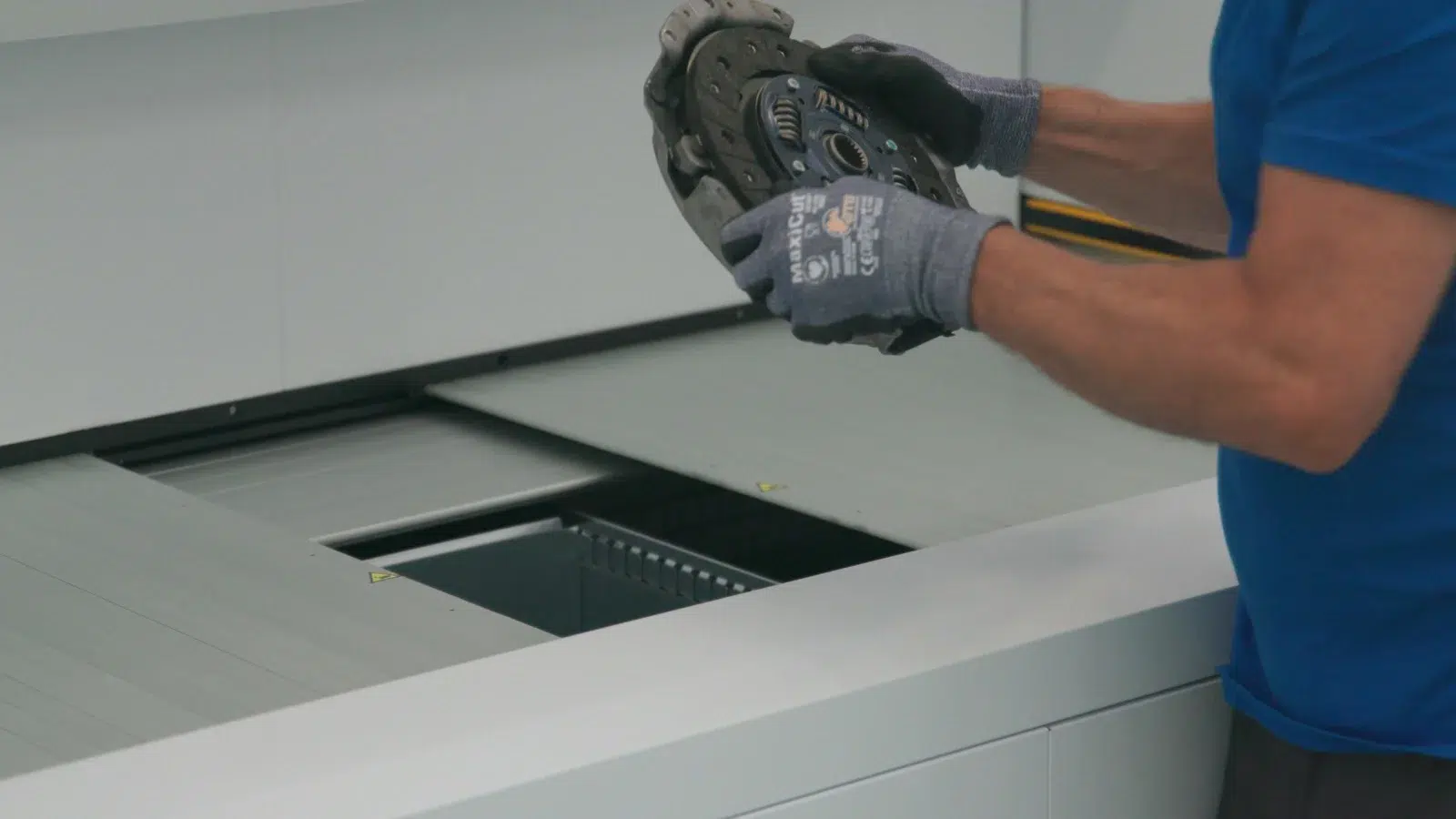

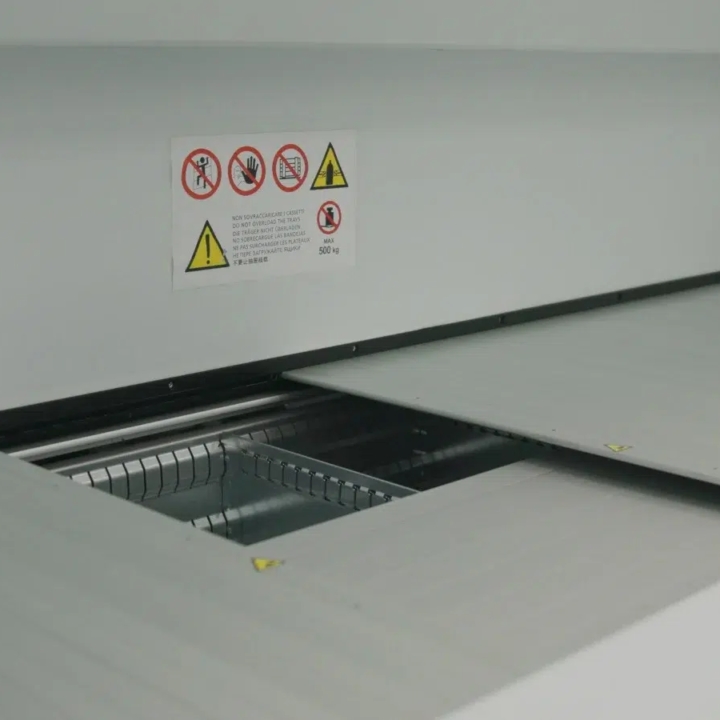

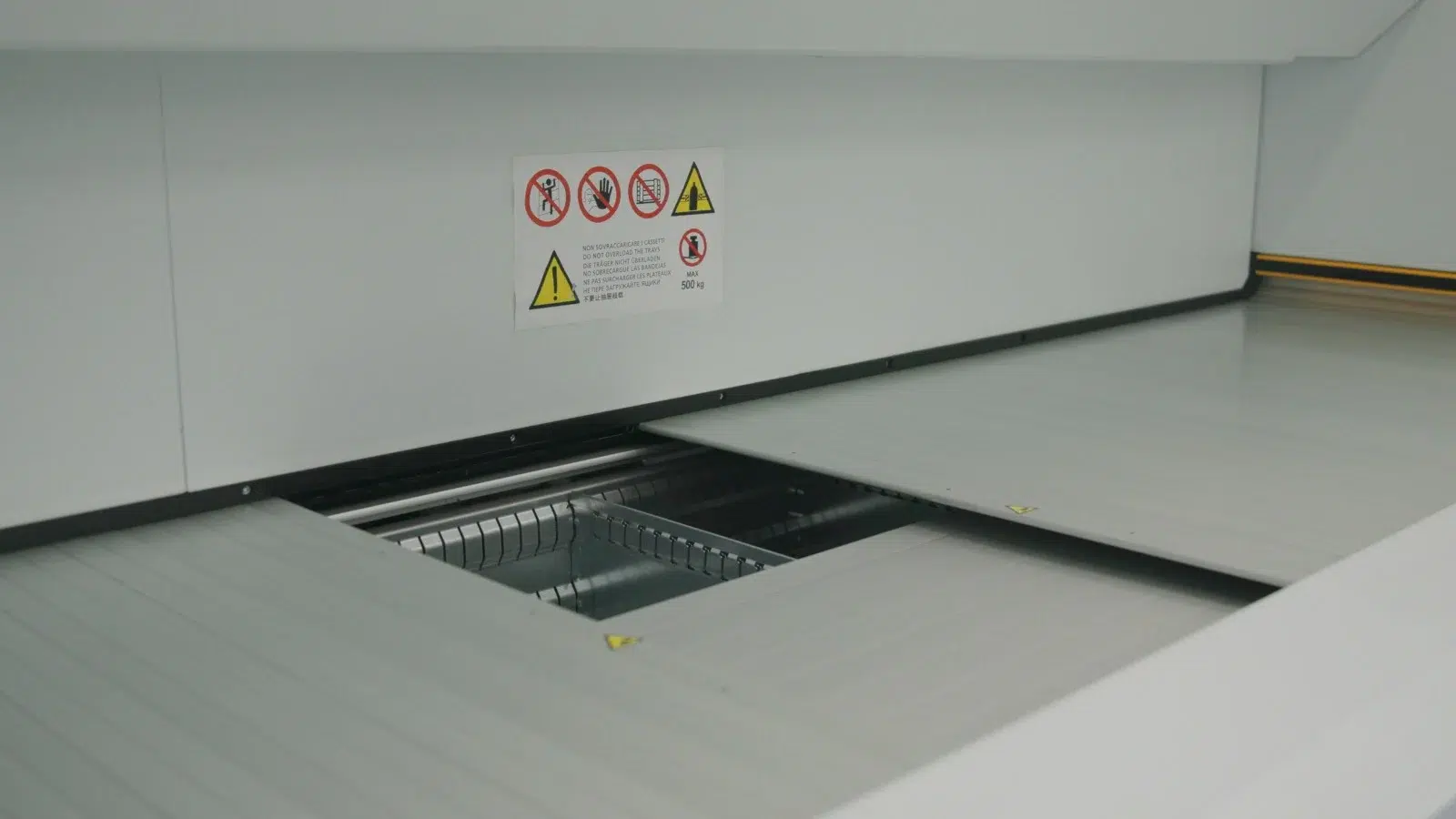

Access is restricted to a single, specific compartment, ensuring items are protected and only retrieved when required.

Intelligent System Design
Brings together the precision and control of industrial vending machines with the storage capacity of a vertical lift module.

Improved Picking Accuracy & Efficiency

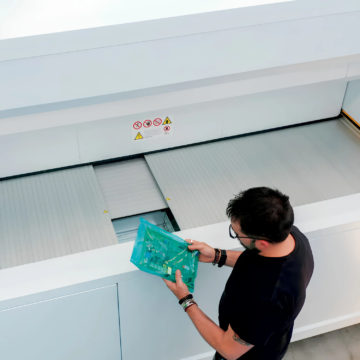

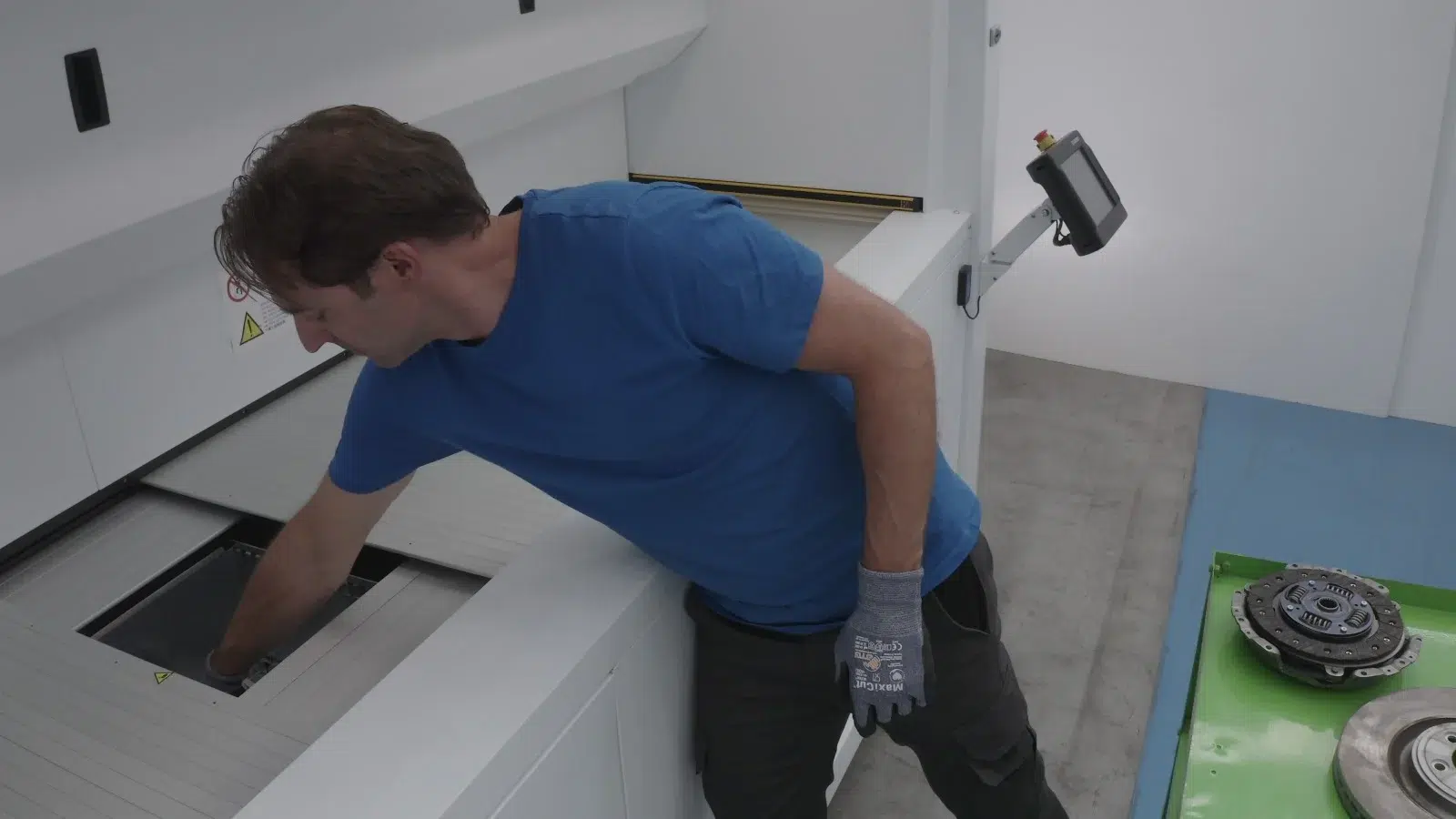

Operators are guided to interact only with the compartment that opens, significantly reducing errors and streamlining the picking process.

Complete Flexibility

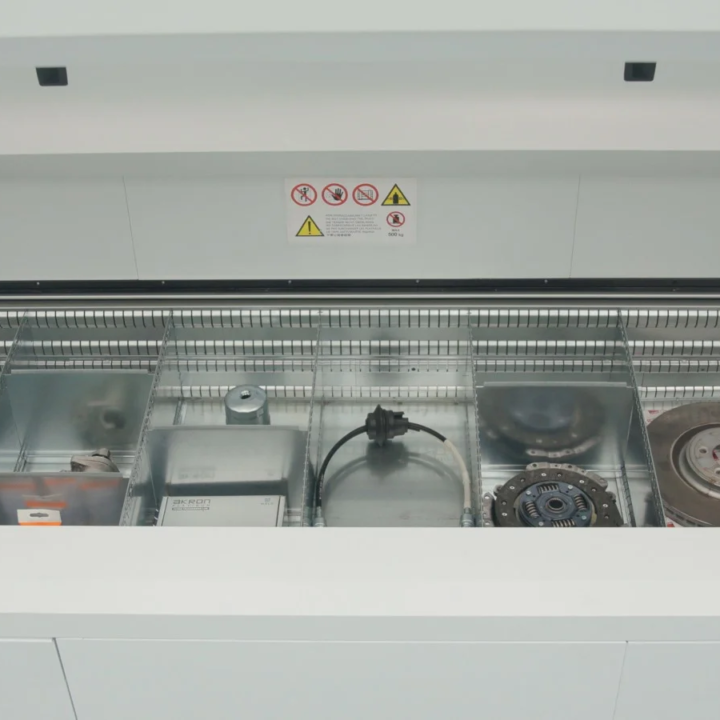

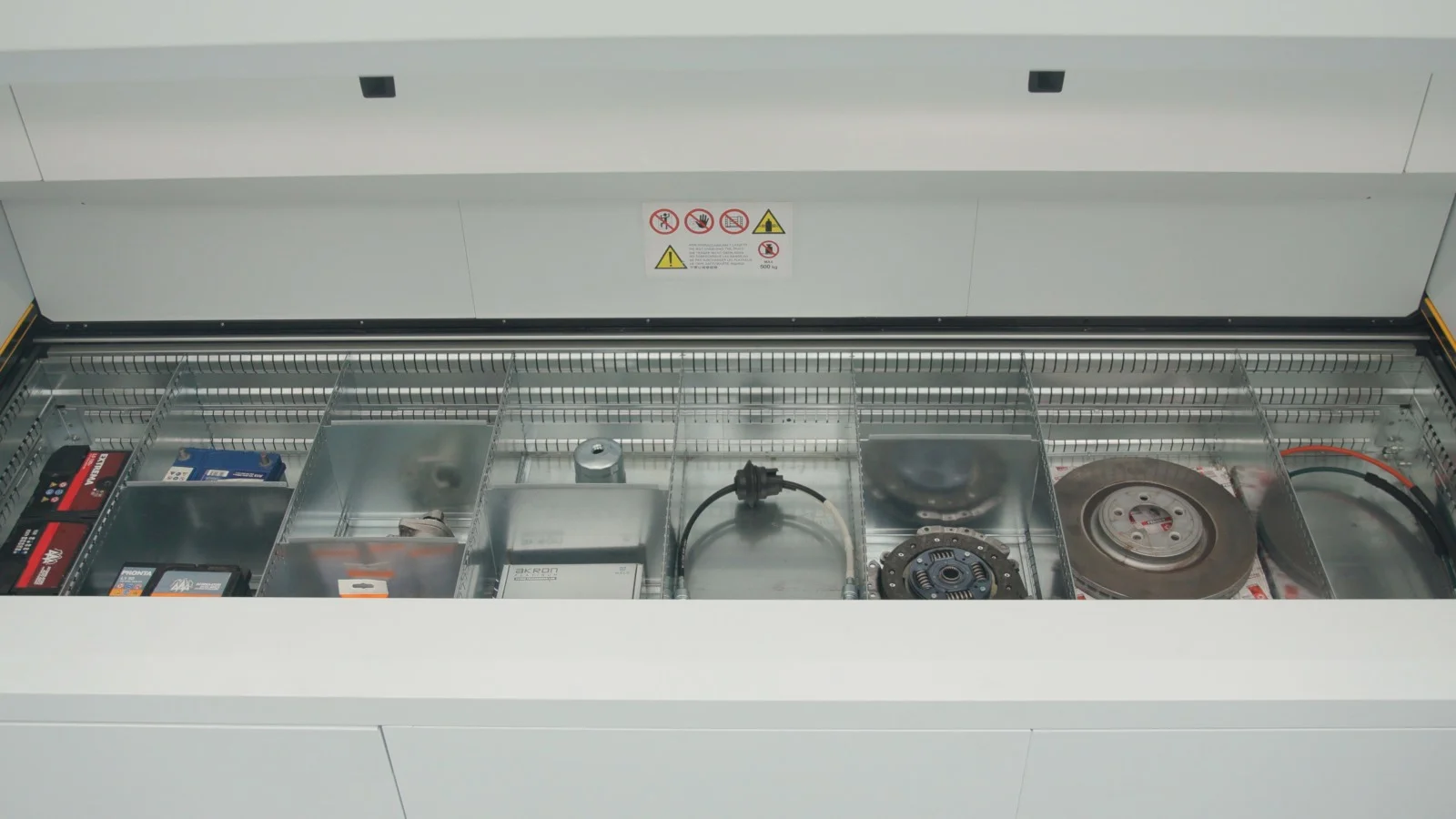

Compartments can be adjusted to suit a wide range of item sizes, from as small as 20 × 20 mm up to 2,500 × 654 mm.

Modula Next Technical Highlights

Providing the highest level of safety and control for automated picking in the warehouse - Technical Specifications

Unit Heights

3,700 – 16,100 mm

Unit Height Increment

70, 120, 145, 170, 195, 220, 245 mm

Tray Storage Pitch

Tray Widths

1,900 & 2,500 mm

Tray Depths

654 mm

Net Tray Payload Capacities

500 kg

Unit Footprint

2,936× 2,986mm (W×D)

Throughput

Varies by application

Operator Interface

10.4 inch touch screen with integration with WMS/third-party systems.

Vending machine precision, built for warehouse storage!

Industrial Vending Solution for Production Equipment Suppliers

By installing a Modula Next at your customer’s site, you create a smarter, more controlled way to manage spare parts, delivering benefits on both sides of the relationship.

For your customers:

Reduced inventory costs: No need to hold large volumes of spare parts, freeing up working capital and reducing warehouse expenses.
Order on demand: Parts are supplied only when needed, eliminating obsolete or excess stock.
Simplified purchasing: Removes the need to source and compare multiple suppliers for common spare parts.

For your business:

Increased sales opportunities: Supply both proprietary and commercial spare parts directly to your customers.
Improved margins: Selling parts as they are used supports more controlled pricing and better profitability.
Usage insights: Real-time tracking of spare part consumption provides valuable data to support forecasting and service strategies.
Centralised inventory control: Monitor stock levels across sites, enabling efficient refilling, invoicing, and redistribution.

Modula Next Smart Software

Modula Next combines vertical lift storage with a controlled-access system inspired by vending machines, giving you complete accuracy at the point of pick. Each tray is automatically delivered to the operator, but access is restricted to a single compartment, ensuring only the correct item can be selected.

All products can be loaded into the system in a single process, with Modula’s warehouse management software (Modula WMS) assigning each item to a specific location. From there, the software continuously tracks usage patterns and automatically optimises tray positioning, bringing frequently picked items closer to the access point to improve speed and efficiency over time.

This approach not only improves picking performance but also maintains full visibility of stock, with every movement tracked and recorded in real time. Items remain secure within the system, reducing the risk of loss, damage, or unauthorised access.
